Lab-Grown Diamond Plates Are The Future of Technology

Diamonds have always been captivating. However, today they hold greater value beyond being a gemstone. Chemical vapor deposition (CVD) technology enables the diamond synthesis with great control over its crystal orientations and purity. As technology has advanced, diamonds have now revolutionized into high-performance materials.

Owing to their mechanical strength, thermal conductivity, and optical transparency, they can serve as the key component of many technologically important applications. Some of these applications include optical windows in high power lasers, vacuum setups, X-rays and cooling solutions for electronic components used in modern day computing devices.

From sensitive electronics to medical devices, diamond plates are seen making impressive progress. At the heart of this transformation stands Aga9.

In this blog, we will explore how Aga9's CVD diamonds are utilized in various applications, reshaping daily life, and fueling futuristic technologies.

Table of Contents

• The Role of Aga9's Diamond Plates in Real-World Applications

• How AGA9 Diamond Plates Offer An Advantage?

• Conclusion

• FAQs

The Role of Aga9's Diamond Plates in Real-World Applications

CVD Diamond plates are increasingly becoming popular and used in everyday technologies. Let us understand some use cases of deploying CVD diamond plates for industrial applications:

Thermal Conductivity: Solving The Heat Bottleneck

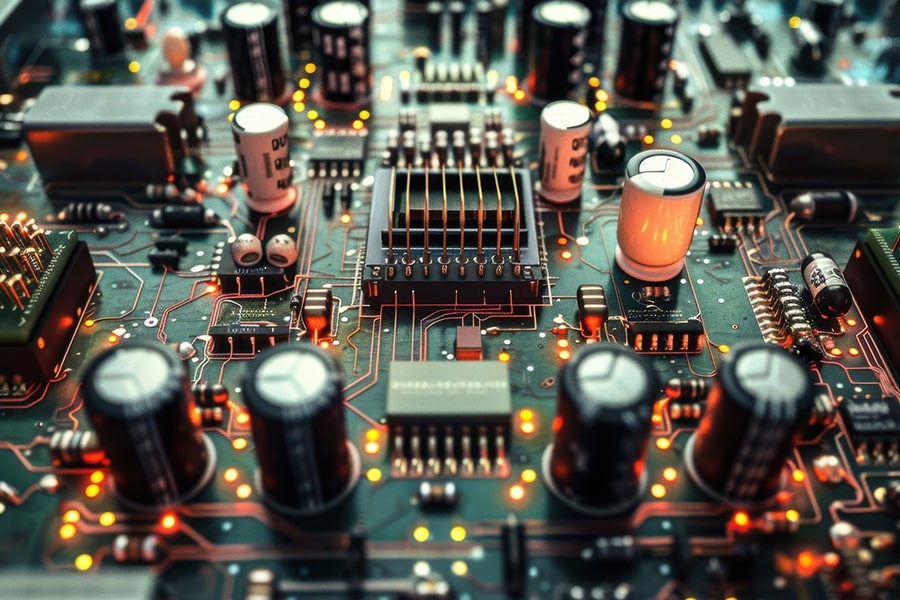

• High-Power Electronics (components like MOSFETs, Diodes, Transistors, ICs): The thermal conductivity of any material defines its true ability which is measured in Watts per meter-Kelvin (W/mK). CVD diamond plates work as exceptional heat spreaders. A heat spreader is a thin layer placed between a heat-generating semiconductor chip and a large heat sink. The key role of these spreaders is to pull away heat from the tiny hot spot on the chip and distribute it across the main heat sink. This prevents overheating and eliminates the possibility of device failure.

• Inverters: An inverter is that part of an electric car that transforms the stored battery's energy into the power that drives the wheels. It is responsible for the conversion of direct current (DC) into alternating current (AC). The inverter plays a central element of the power electronics system in an electric vehicle (EV). It sits between the battery (DC) and the motor (AC).

  The EV battery stores DC, but the motor (usually an AC induction or permanent magnet motor) requires AC to function. The inverter makes this conversion possible. These devices get very hot as they work.

  Diamond is a game-changer here because it is the world's best-known material for moving heat away quickly. Inverters made with diamond semiconductors tend to be smaller, lighter and more efficient.

  They provide better battery to wheel efficiency. In addition, they also eliminate the requirement for bulky cooling systems. By using thin layers of diamond, engineers have been able to make inverters that are up to six times smaller than what's used in some popular electric cars.

  This is because the diamond is so good at keeping the internal chips cool that you can use far fewer of them to do the same job.

• Electric Vehicle (Battery Charging & Control): Electric vehicles often face the challenge of the battery getting too hot. There are two possible reasons for this - either it happens due to fast charging or when you drive the  car too fast. High temperatures have the tendency to affect the battery's performance and shorten its life. With the inclusion of diamond plates, this concern in electric vehicles can be resolved.

  This is possible since the powerful cooling ability allows the battery to charge up to five times faster while staying in a safe temperature range. This makes the battery safe to use while also extending its lifespan.

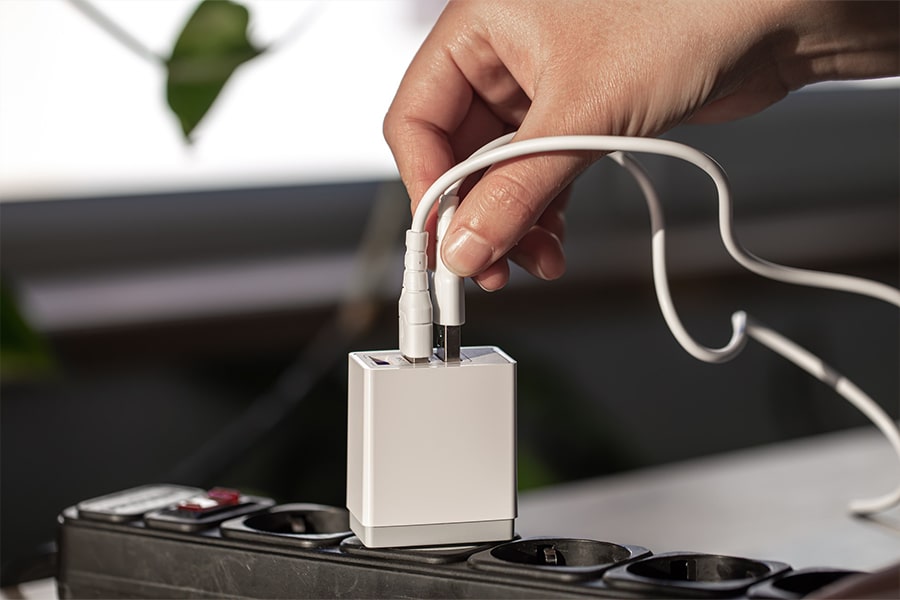

• Power Supplies (for Computers, Chargers, UPS): Devices that we use on a regular basis like laptops, mobile chargers, and uninterruptible power supplies (UPS) are dependent on power supplies that continuously handle high switching currents. Due to this, overheating in these systems might lead to drop in efficiency and may affect the efficiency or hardware damage.

  With the help of CVD diamond plates into power supply modules, manufacturers can achieve superior heat dissipation. This will result in higher reliability and extended lifespans for consumer electronics and data-center hardware alike.

• Power Transmission Devices (High Voltage Direct Current HVDC): Power semiconductor devices are the backbone of electronic power systems used in almost all electronic manufacturing industries. One of the most impactful applications is in High-Voltage Direct Current (HVDC) technology which is an efficient alternative to AC for long-distance power transmission.

  It is a technology that involves isolating two independent Alternating Current (AC) power grids while permitting the exchange of power between both AC grids. Diamonds with its exceptional properties stands as a breakthrough semiconductor material for power transmission devices.

• High Power Light Emitting Diodes (LEDs): High intensity LEDs tend to generate high heat fluxes which conventional material might find it difficult to handle. The excessive thermal stress is the main reason for degradation and premature failure of these electronic devices. Here is where diamond plates can make a positive impact.

  Diamond plates have a thermal conductivity of 2000 W/mk which makes them easy to draw away heat from the active junction of the device and spread across a larger area. Hence their application as heat sinks and heat spreaders is seeing a rise.

Beyond the above applications, CVD diamond plates also provide excellent efficiency in other high-power and high-frequency electronic devices. These comprise of the following modern electronics:

• High-End AI chips

• RF Power Amplifiers

• High-Speed Processors

Optical Transparency Based

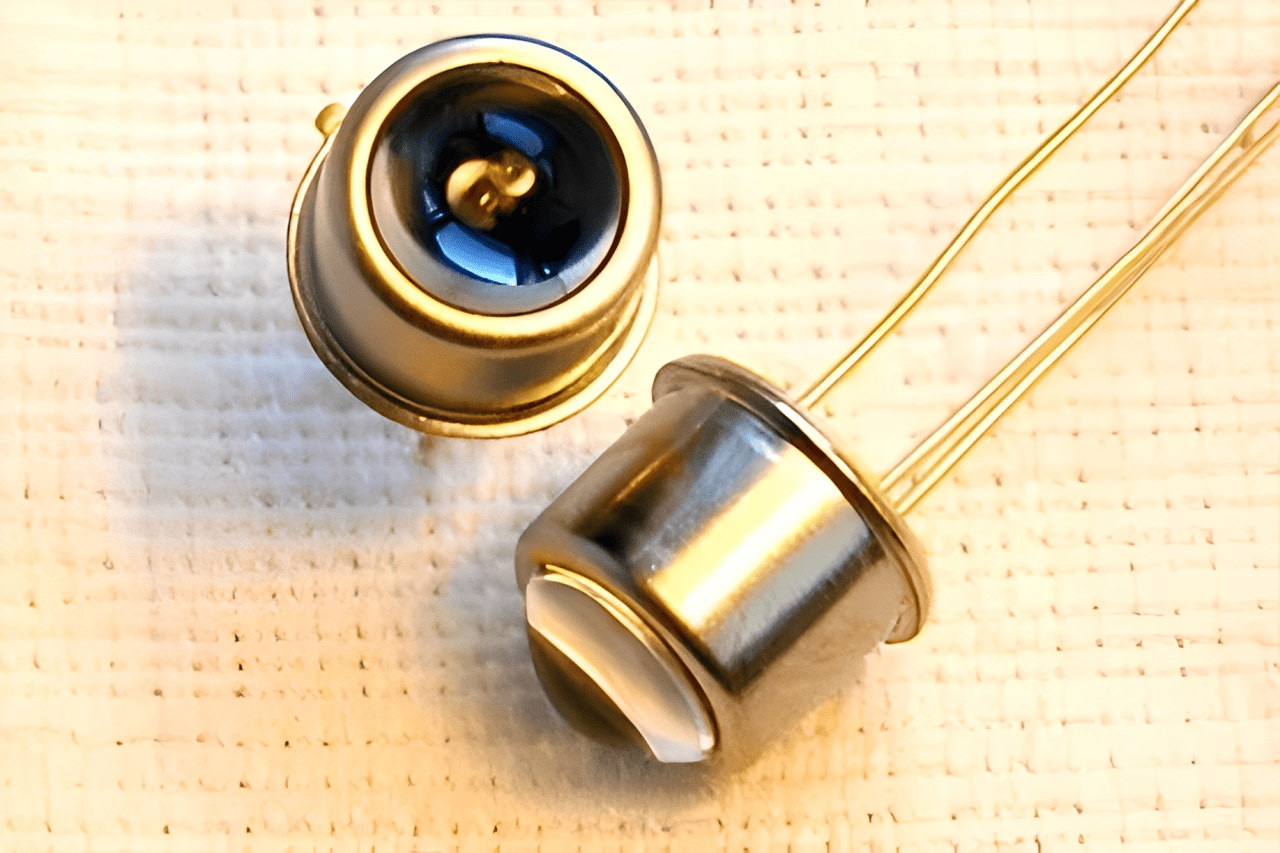

• Deep UV-Sensor/Detector: Deep UV photodetectors is an emerging application where diamond plates will demonstrate unique advantages. A deep UV detector is a photodetector designed to sense and convert deep ultraviolet (DUV) light into an electrical signal, specifically within the wavelength range of 200-280 nm.

  These are widely used in the following areas including flame sensing, environmental monitoring, medical detection and video imaging.

  It can sense light and convert it into an electrical signal. As the UV light hits the surface of the photodetector, a measurable small current or voltage is generated. Photodetectors made of diamonds have the tendency to sense deep UV light owing to the high sensitivity of diamonds to UV photons. Plus they do not result in any harsh environmental damage like radiation or heat.

These are some of the reasons why diamond plates are a good choice for making deep UV photodetectors and sensors.

• High-Power IR Lasers: High power lasers have the tendency to generate immense heat leading to excess absorption of energy. What this does is it affects the performance of the laser and quality of beam. CVD diamond is an optimal material for high-power IR laser windows because it is transparent from the deep UV to the far infrared and possesses an extremely low absorption coefficient.

• X-Ray Windows: Made of carbon, a "low Z" material, diamonds are almost invisible to X-rays and allow X-rays to pass through them easily. In places like synchrotron accelerators where big machines use strong X-rays for scientific research, there are special windows that require X-rays to pass through them. This must be done while withstanding heat and pressure. Originally, beryllium has been used for these X-ray windows which is toxic and requires special handling.

  Lab-grown diamonds are considered a much safer and better alternative as it is non-toxic and has excellent thermal conductivity. This helps prevent overheating when the window absorbs energy from the X-rays.

  In addition, it can handle more power than beryllium as it provides proper cooling along the edges.

How Aga9's Diamond Plates Offer an Advantage?

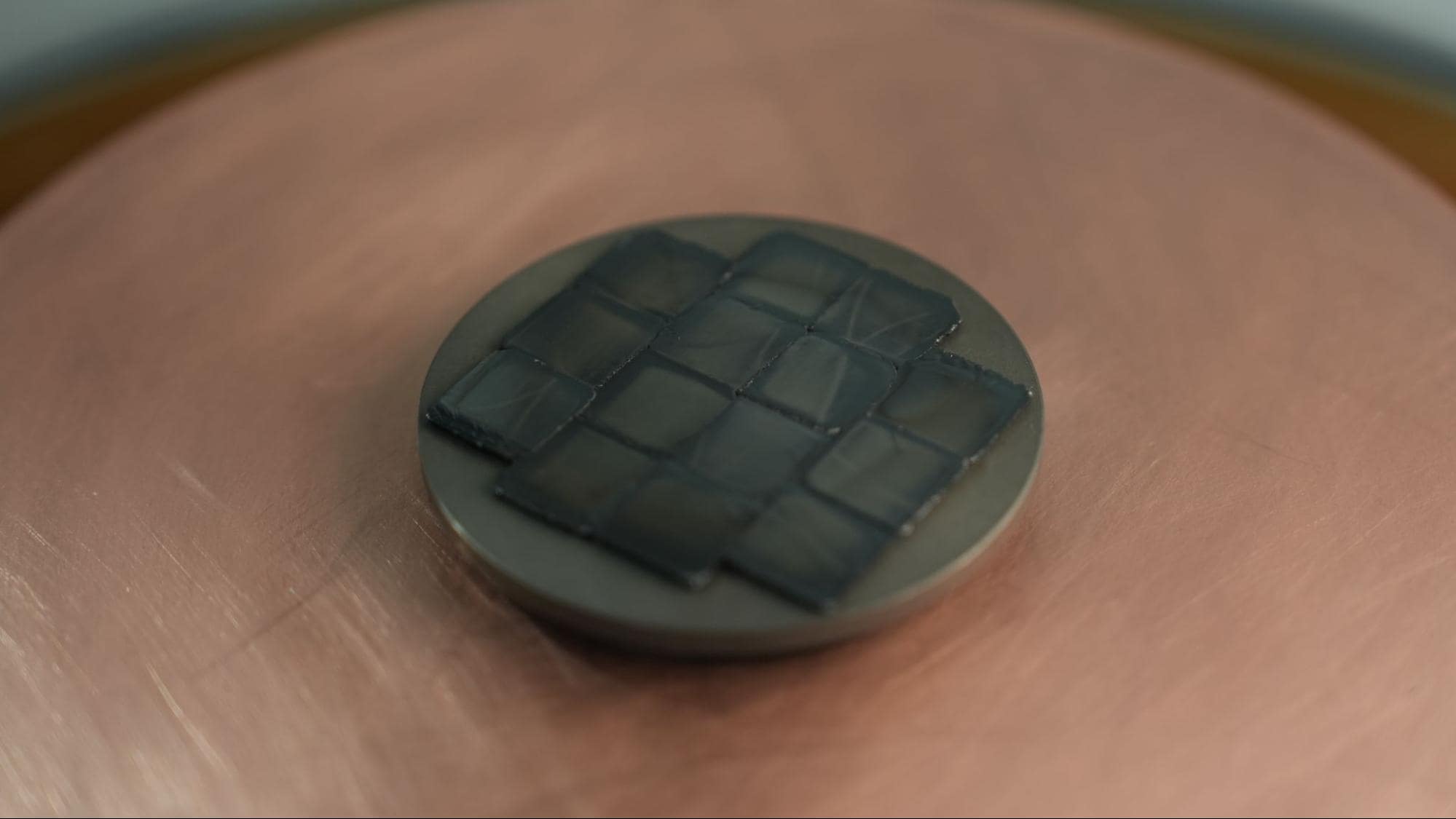

Aga9, specializes in the production of CVD diamond  for non-gem purposes. We deploy the advanced microwave plasma-assisted chemical vapor deposition technology for production of our diamond plates. With our comprehensive expertise, Aga9 can tailor the diamond growth process as per the client and business requirements. Our dedicated expert team and engineers work meticulously and closely with partners/clients to understand the unique challenges of each project.

With a dedicated approach to quality control and customization, we ensure that every diamond plate produced meets the highest industry standards. We strive to become a trusted partner providing a mix of advanced research, manufacturing, and industrial breakthroughs.

Conclusion

To conclude, the properties of diamond, long associated with natural gemstones, are being harnessed for advanced engineering applications through the development of diamond plates. As the scope of innovation is building, diamond plates are poised to power the next great technological leap.

It offers heat conductivity that is eight to ten times higher than other commonly used ceramic heat spreaders like aluminum nitride and silicon carbide. This characteristic makes diamonds effective in addressing the key concerns of thermal management.

With their unparalleled ability to manage heat and their superior strength, diamond plates are here to create a foundational technology, poised to power the innovations of tomorrow.

FAQs

a. How are Aga9’s diamond plates manufactured?

Aga9’s diamond plates are made using microwave plasma-assisted CVD. This results in highly pure, uniform, and high-quality diamond plates for advanced industrial uses.

b. Which industries will benefit most with the help of diamond plates?

Diamond plates will prove to be beneficial for the following industries:

• Electronics

• Aerospace & Defense

• Energy and Environment

• Wearable Technology

c. Why are diamond plates a superior material compared to heat spreaders?

As compared to regular heat spreaders, diamond plates offer much better thermal conductivity over 2000 W/mK. This allows for better heat management in demanding electronic and industrial applications.

d. How can I get a quote or place an order for Aga9 diamond plates?

You can request a quote or place an order by emailing us at [email protected] or calling +1 201 937 0807 (USA) / +91 91363 27595 (India).

e. How are diamond plates beneficial for electric vehicles?

Diamond plates in electric vehicles provide lighter and more efficient inverters, support rapid charging and help improve the overall performance and driving range.

f. What makes Aga9’s diamond plates a trusted choice?

Aga9’s diamond plates are engineered with the lowest impurity levels, remarkable surface finish and stress-free crystal structures that offer reliable performance across diverse applications.
